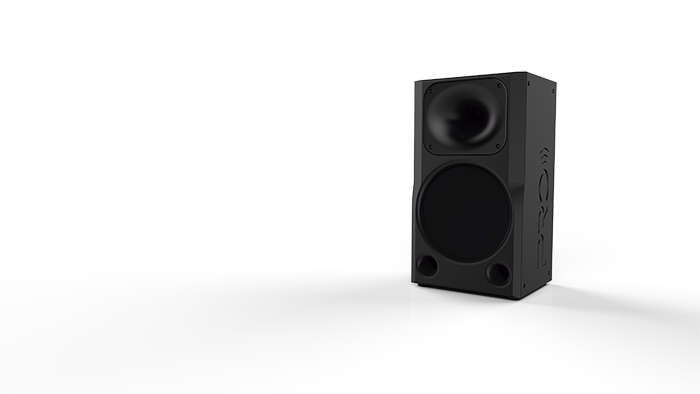

S-12sm
KEY FEATURES
• Professional 12-inch, 1400W Woofer with 4-inch Voice Coil
• Professional 1.7-inch Ultra-Purity™ Compression Driver on
Elliptical Wide Dispersion Horn
• High-Sensitivity: 93dB LF; 108dB HF
• Wide Bandwidth from a Compact Enclosure: 38Hz-22kHz, -6dB
• Maximum Output: 128dB
• State-of-the-art technical performance via PRO Loudspeaker Controller
• 4-ohm Nominal Impedance LF; 8-ohms HF
• Requires PRO Loudspeaker Controller (2 output channels)
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS
The S-12sm is the first in the new “S” series loudspeakers from Pro Audio Technology - objectively and subjectively the finest loudspeakers the company has ever produced.
The S-12sm is a medium format multipurpose loudspeaker designed for ultimate accuracy, resolution and unrestricted dynamics. Though compact in size, the S-12sm produces surprisingly full-range, visceral sound typically only found in much larger loudspeakers. The S-12sm’s unique elliptical horn and wide-bandwidth Ultra-Purity™ high-frequency compression driver provide ideal dispersion of high- frequency energy. The sound is clean, pure and coherent with no trace whatsoever of compression driver harshness.
Developed as part of an integrated digital system, the S-12sm’s companion PRO Loudspeaker Controller employs proprietary Digital Signal Processing (DSP) for high-resolution frequency response contouring, dynamics processing and critical time alignment. As in commercial and professional audio systems, the S-12sm is bi-amplified to maximize the performance of each driver in the system. With maximum output exceeding 130dB, it is the ideal choice for screen channel or reference applications in small, medium, and large sized rooms where loudspeaker size limitations might be a concern.
The subjective and measured performance of the S-12sm is so good it can be successfully used as a reference monitor in studios and other applications where absolute accuracy and high resolution are required.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
POWER RECOMMENDATION:
WIRING REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
Bi-amplified medium format multipurpose loudspeaker
12" professional grade woofer with 4" voice coil
1.7" professional-grade compression driver with advanced polymer diaphragm
on 80° x 60° elliptical horn
8th order acoustic via DSP
1400W LF / 100W HF
93dB LF / 108dB HF
Bi-amplification via PRO Amplified Loudspeaker Controller
700W LF / 200W HF
4 conductors
38Hz – 22kHz, -6dB
128dB
4-ohms LF / 8-ohms HF
25" H x 14" W x 12" D
63 lbs.
DOCUMENTATION
• SCR-12sm Product Sheet - PDF Format
PHOTOS
Coming soon
