The LFC-10sm was developed to provide trademark PRO visceral low bass output in a compact, easy-to-integrate package. An extremely long-throw 10” woofer is used in a compact enclosure with over-sized free-flow port to maximize acoustic output and power handling. The LFC-10sm is tuned via DSP to match the acoustic response of PRO’s larger vented subwoofers. The result is the same visceral yet tight bass quality that users have come to expect from Pro Audio Technology, but in a compact, easy-to-integrate form factor.
The compact enclosure is small enough to fit inconspicuously within any living décor and the 12” depth makes locating the subwoofer inside cabinets or millwork a breeze.
APPLICATION:
LF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
Compact format subwoofer
10" ultra-long throw woofer
8th order acoustic via DSP
1000W
90dB
Requires amplification via PRO power amplifier
22Hz - 80Hz
>110dB
4-ohms
26" H x 14" W x 12" D
57 lbs.
DOCUMENTATION
• LFC-10sm 3-View Drawing - PDF Format
• LFC-10sm Product Sheet - PDF Format
PHOTOS

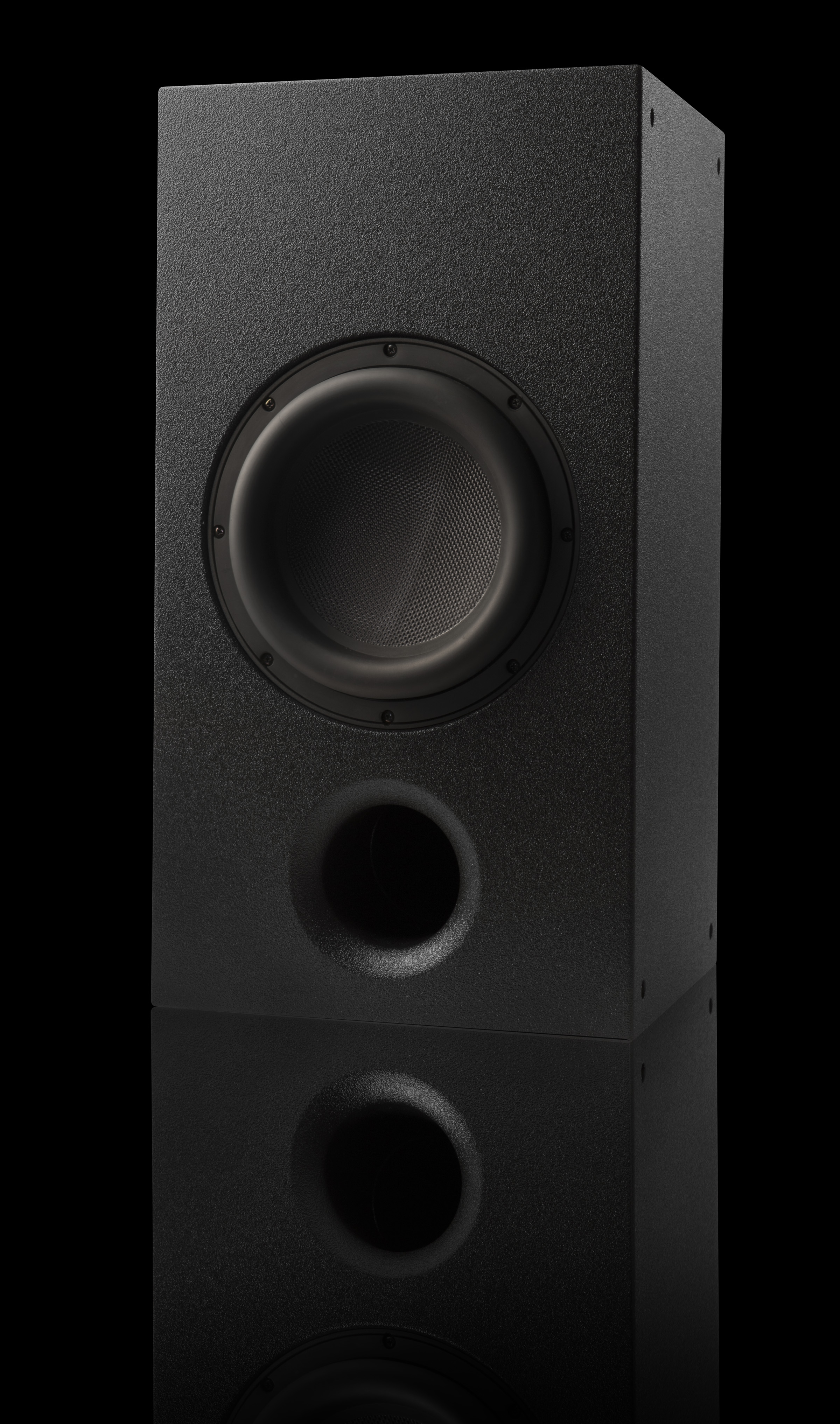

• LFC-10sm Product Photo - Black Background - JPEG Format *

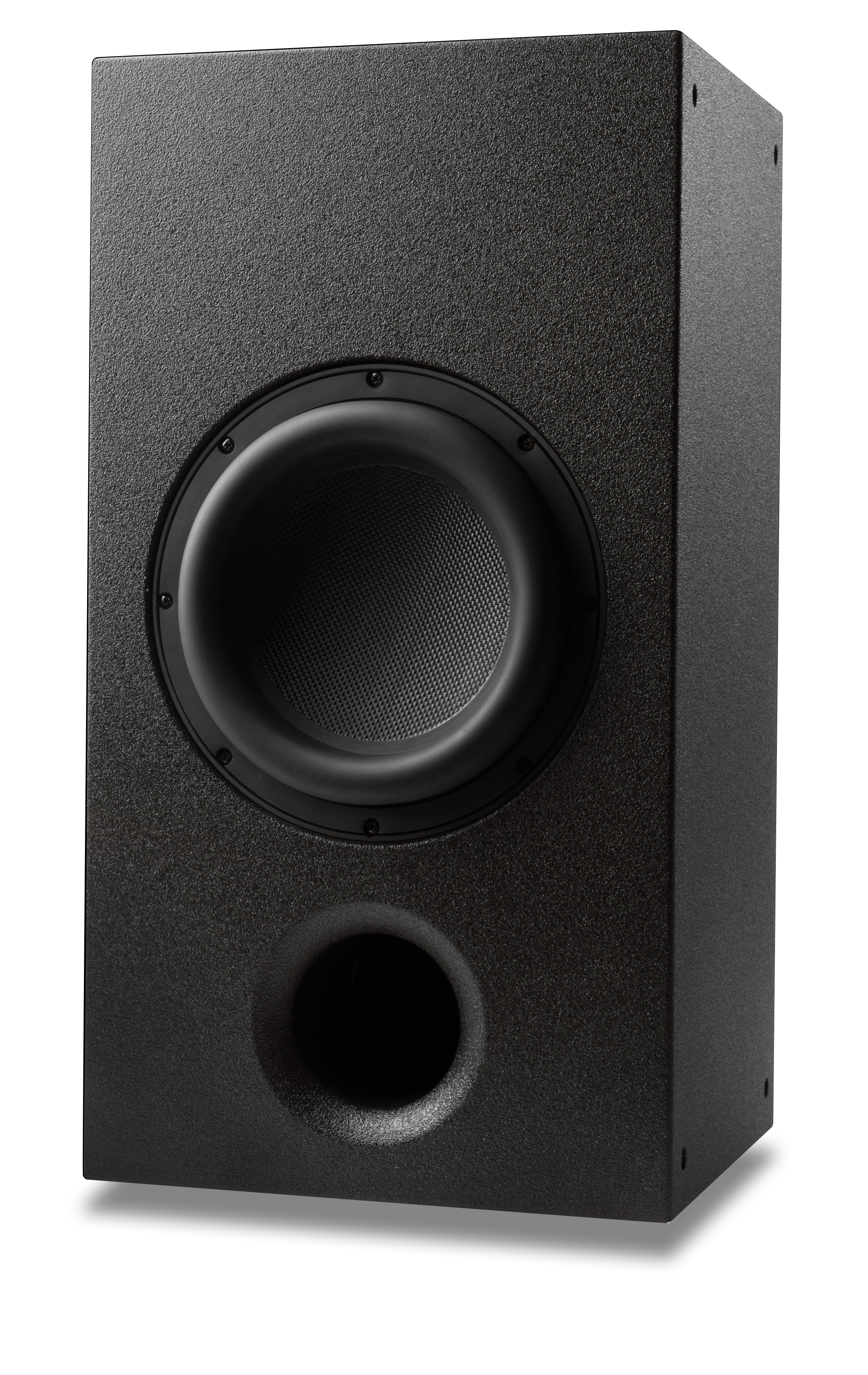

• LFC-10sm Product Photo - White Background - JPEG Format *
* click to open then right-click image and "save as" to save
LFC-10sm
KEY FEATURES
• Extreme Long-Throw, 10-inch Driver for High Output
• Compact Enclosure - Only 14" x 26" x 12"
• Trademark PRO Visceral Bass Impact from Small Enclosure
• Maximum Output: >110dB
• 4-ohm Nominal Impedance
• DSP Optimized Performance
• Requires PRO DSP Processor/Amplifier
