The LFC-12v was designed as a lower-cost alternative to the highly-successful LFC-212ai making possible multiple-subwoofer designs in budget-conscious systems. The LFC-12v has the same width and height as the LFC-212ai, but is even one-inch shallower at only 6" deep, making it the ideal choice in rooms where space is limited.
The LFC-12v is also the perfect LFE solution for media room systems based around the DMA-1508 8-channel amplifier. The DMA’s 300W channels have adequate power to achieve reference-level output from the high-sensitivity LFC-12v, at a low cost and with minimal system complexity. Never before has achieving the famous PRO sound been simpler or more affordable.
APPLICATION:
LF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
Architectural format subwoofer
12” professional grade woofer with 4” voice coil
8th order acoustic via DSP
700W
96dB
Requires amplification via PRO power amplifier
22Hz - 80H
117dB
8-ohms
60" H x 14" W x 6" D
76 lbs.
DOCUMENTATION
• LFC-12v 3-View Drawing - PDF Format
• LFC-12v 3-View Drawing - DWG Format
• LFC-12v Product Sheet - PDF Format
PHOTOS

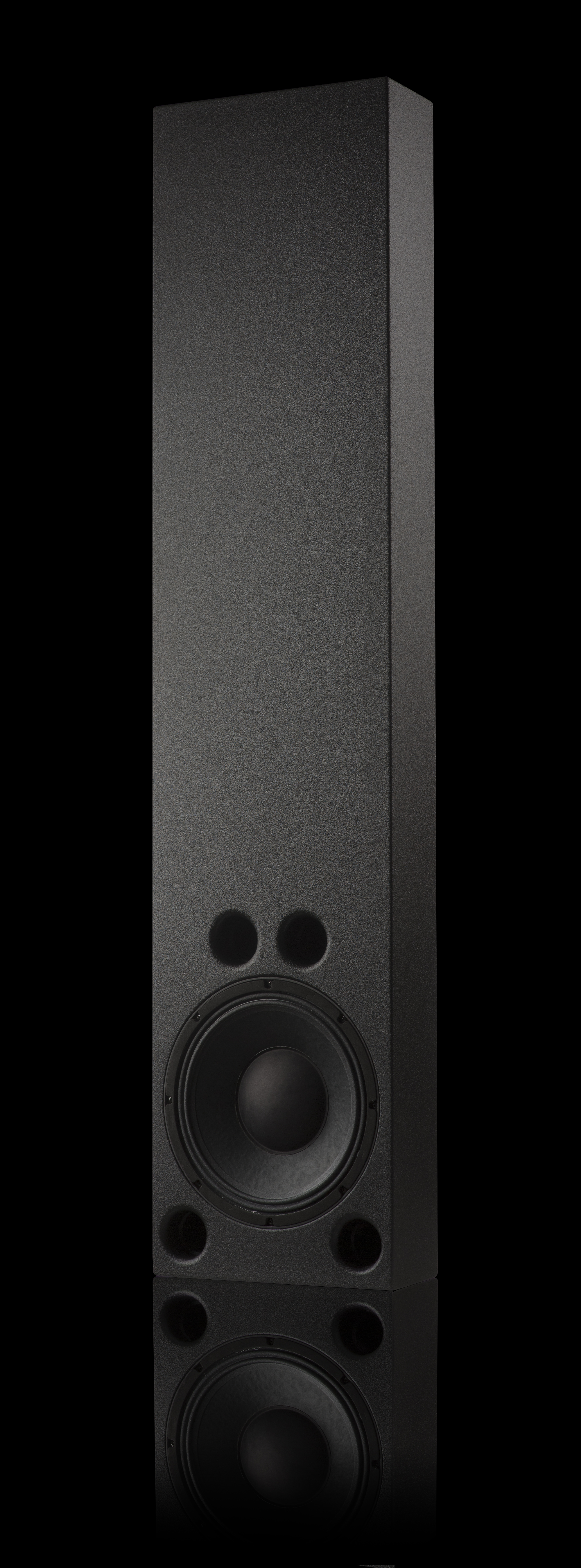

• LFC-12v Product Photo - Black Background - JPEG Format *

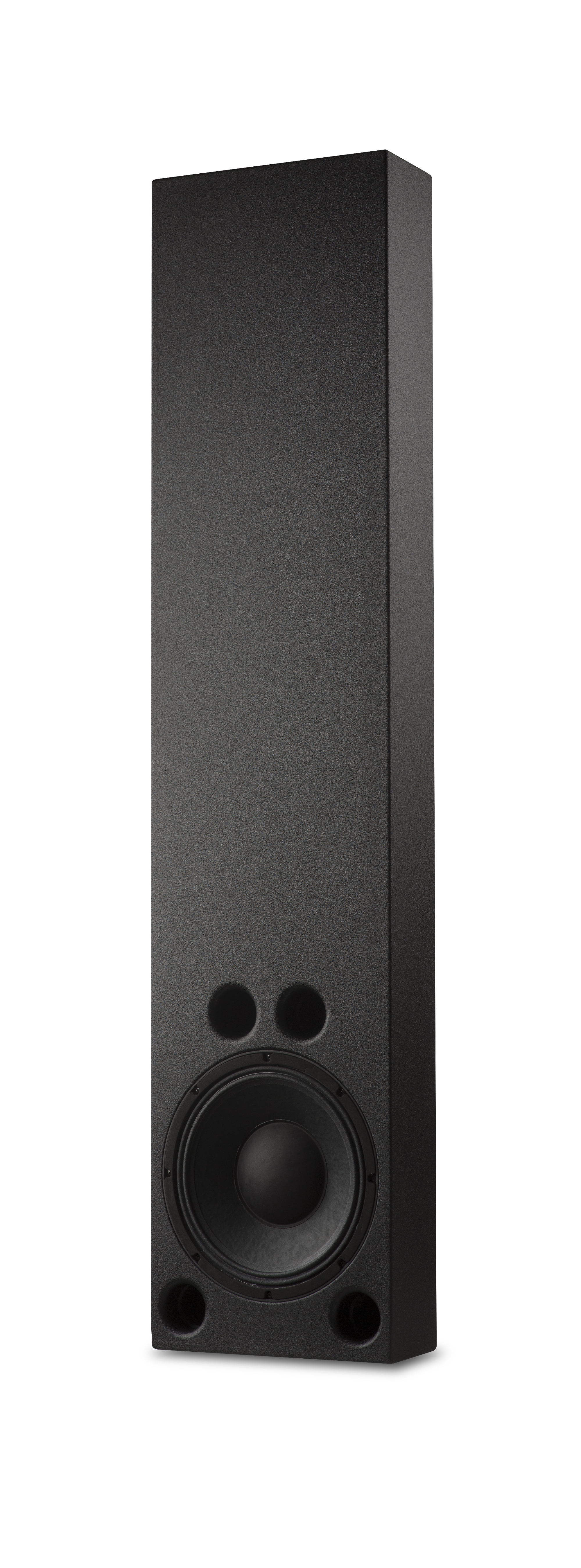

• LFC-12v Product Photo - White Background - JPEG Format *
* click to open then right-click image and "save as" to save

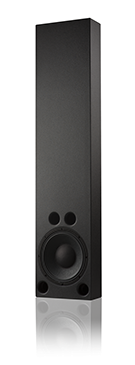

LFC-12v
KEY FEATURES
• Architectural Installation™ Cabinet Design: 6-inch Total Depth
for Easy Built-In Installation
• Professional 12-inch, 700W Driver with 4-inch Voice Coil
• High-Sensitivity: 96dB
• Enclosure Depth Integrates with Other ai Models
• Maximum Output: 117dB
• Low Cost
• Requires PRO DSP Processor/Amplifier
