SCR-3215sm
KEY FEATURES
• Four-Way Reference Loudspeaker System
• Dual Professional 15-inch 1400W Woofers with 4-inch Voice Coils
• 41-pound / 7-inch Carbon Fiber Compression Lower-Midrange Driver
• Annular Diaphragm Co-Axial Upper-Mid / High-Frequency Driver
• High-Sensitivity: 102dB LF; 114dB MF, 114dB UMF, 114dB HF
• Maximum Output: >140dB
• Designed for Placement Behind Acoustically Transparent Screen
• 8th Order Crossover Slopes
• DSP Performance Optimized
• Requires Five Channels of PRO Amplification
• Capable of “Reference Level” at >12 Meters
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS
The culmination of more than 25 years in high-performance loudspeaker design, the SCR-3215sm was first conceived as an exercise to push the performance envelope to its limits… to satisfy our own curiosity. To remove all compromise from the technical equation, the project demanded that no expense be spared in the selection of drivers. Performance alone would be the criteria.

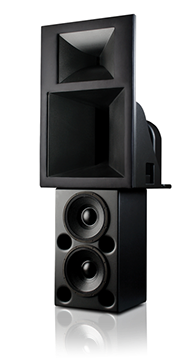

The SCR-3215sm reference screen channel loudspeaker stands over 7 feet in height and weighs in at nearly 350 pounds per speaker. Its dual 15-inch woofers provide a low frequency sensitivity of 102dB with 1 watt of input power while moving air with over 350 square inches of surface area. And move air it does! Each low frequency driver is supported by dual ports and powered by a massive motor system weighing nearly 30-pounds. With 4-inch voice coils, thermal power handling is maximized, allowing the SCR-3215sm to play at live concert sound pressure levels for extended periods of time without fear of driver failure. To unlock the potential of each 15-inch driver, each unit is terminated to an individual set of binding posts; then powered by a dedicated 1000 watt amplifier channel via a companion PRO amplifiers. As with all PRO cinema loudspeakers, proprietary Digital Signal Processing (DSP) is employed to provide all crossover functions, time correction, and very high resolution frequency response shaping, eliminating restrictive passive filter networks from the signal path. Since signal filtration is achieved prior to amplification, the output stage of each amp channel is directly wired to the input terminals of its associated driver, maximizing power transfer and control. Bass is tight and accurate, and delivered with the same visceral slam experienced in the commercial theater or concert setting.
At the heart of the SCR-3215sm’s mid/high frequency assembly is a 41-pound ultra high-output (114dB / 1 watt) compression driver. Its 7-inch carbon fiber diaphragm provides pistonic motion over three and one half octaves, resulting in the most effortless, coherent, and dynamically correct rendering of vocals and instrumentation possible. Dispersion and acoustic power transfer are controlled via a 28.5”-square constant directivity horn with over 800 square inches of effective radiating surface – more than 40 times the radiating area of a typical cone midrange.
Upper mid and high frequencies for the SCR-3215sm are supplied via an annular diaphragm co-axial driver for silky smooth treble and uncolored harmonics. Mated to a large format 18” x 22” horn, the mid/high frequency system provides 396 square inches of radiating surface to drive the air; or the equivalent of more than 500 one-inch dome tweeters per speaker. As in commercial cinema systems, the SCR-3215sm mid/high frequency assembly employs bi-amplification to maximize the performance of each driver in the system.
Engineered as a statement product, the SCR-3215sm and companion PRO amplifiers are part of a sophisticated digital cinema system employing advanced DSP to redefine the industry’s concept of “accuracy” and sonic realism. Maximum output is >140 dB, making the SCR-3215 the definitive loudspeaker of choice for large to very large room applications… and those who desire the live rock concert experience daily!
APPLICATION:
LF SECTION:
MF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
Large format 4-way screen channel loudspeaker
Dual 15" professional grade woofers with 4” voice coil
7" professional grade compression driver on large format horn
Carbon fiber diaphragm
90° x 40° horn / 28" x 28"
1.5" annular diaphragm coaxial compression driver
90° x 60° horn / 18” x 22”
8th order acoustic via DSP
2800W LF / 400W MF / 150W UMF / 80W HF
102dB LF / 114dB MF / 114dB UMF/HF
Requires five channels of PRO amplification
34Hz – 24kHz
>140dB SPL
4-ohms / 8-ohms / 8-ohms / 8-ohms
88" H x 32" W x 41" D
180 lbs. (MF/ HF assembly)
142 lbs. (LF enclosure)
DOCUMENTATION
• SCR-3215sm 3-View Drawing - PDF Format
• SCR-3215sm Product Sheet - PDF Format
PHOTOS
• SCR-3215sm Product Photo - Black Background - PDF Format

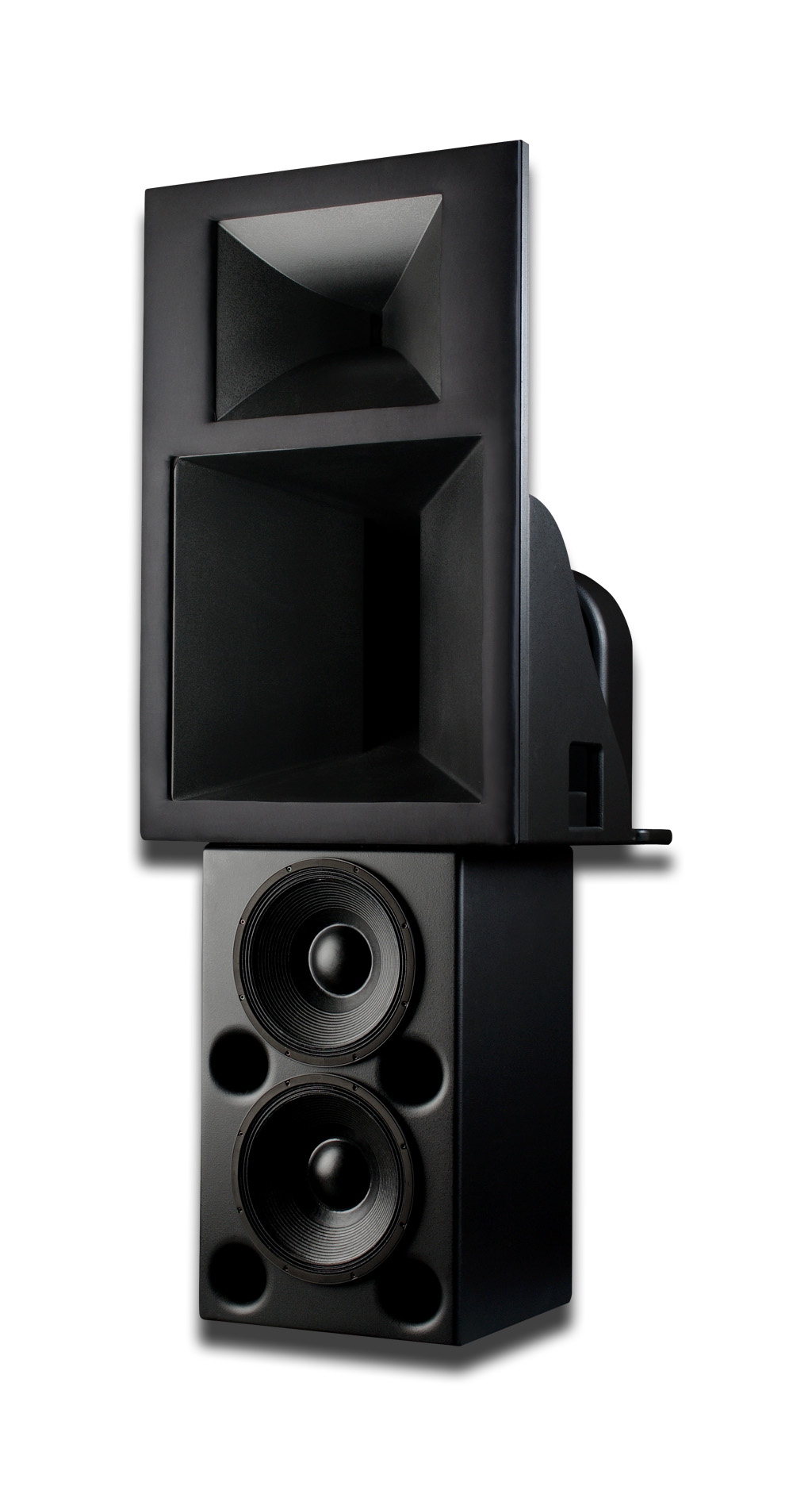

• SCR-3215sm Product Photo - White Background - JPEG Format *
