SCRS-5iw
KEY FEATURES
• In-Wall Design with Frameless Grill
• All Metal Construction
• Bi-Amp or Single-Amp Operation with Include Passive Crossover
• Integral Back Box
• Fits Standard 2 x 4 Stud Bay
• True Compression HF Driver with Neodymium Motor System
• High-Power 5-inch Woofer
• Perfect Companion for SCRS-25iwa In-Ceiling Loudspeaker
• DSP Optimized Performance
• Requires PRO Amplifier
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS
The SCRS-5iw is the smallest Pro Audio Technology loudspeaker but don’t let its diminutive size fool you: this is a true high-output, professional-style loudspeaker system that provides the startling dynamics for which PRO has become famous. The 5iw employs a genuine high frequency compression driver mounted on a proprietary horn along with a high-power 5” wide-band woofer. An integrated passive crossover allows the SCRS-5iw to operate with a single amp channel when performance is mandated, but budget constraints are a concern. Likewise, the SCRS-5iw can be reconfigured for bi-amp operation.
Designed for retrofit applications, the 5iw employs PRO’s proprietary MonoClamp™ design which allows the speaker to be installed in a matter of seconds with nothing more than a Philips screwdriver. Any wall material thickness can be accommodated by simply changing the length of two screws to meet the application. Like all Pro Audio Technology loudspeakers, the SCRS-5iw requires PRO amplification as DSP is required in all operating modes.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
CUTOUT DIMENSIONS:
WEIGHT:
In-wall high-output bi or single amp speaker with frameless grille
5" long-throw woofer
Professional 0.75" compression driver on 90° x 60° elliptical horn
Included passive network or 8th order via DSP in biamp mode
160W LF / 40W HF
91dB LF / 109dB HF
Requires PRO power amplifier with DSP
65Hz – 18kHz
109dB
8-ohms LF / 8-ohms HF
11.5" H x 7.5" W x 3.9" D (with grille and back box)
10.4" H x 6.6" W
7 lbs.
DOCUMENTATION
• SCRS-5iw 3-View Drawing - PDF Format
• SCRS-5iw 3-View Drawing - DWG Format
• SCRS-5iw Installation Guide - PDF Format
• SCRS-5iw Product Sheet - PDF Format
PHOTOS

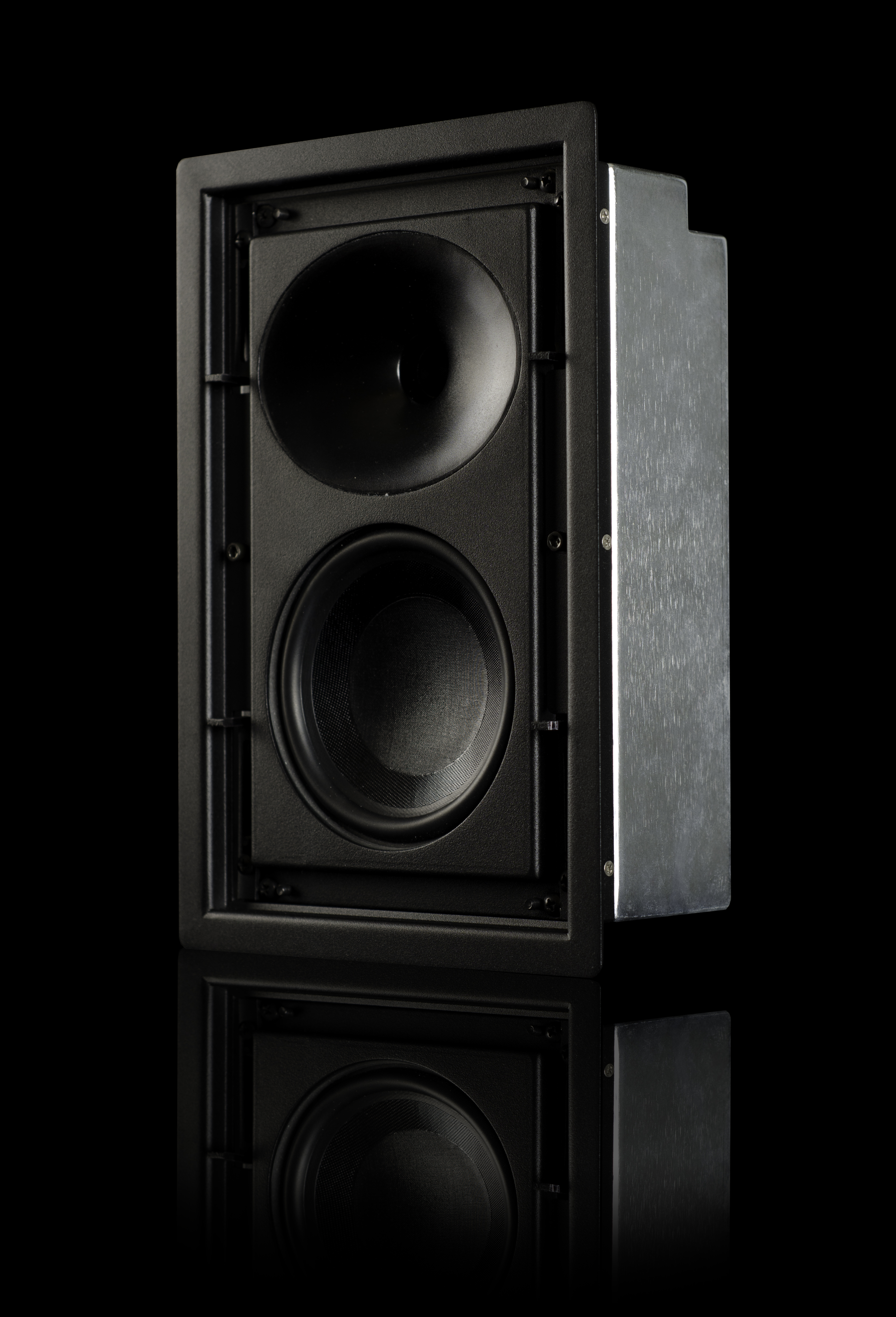

• SCRS-5iw Product Photo - Black Background - JPEG Format *

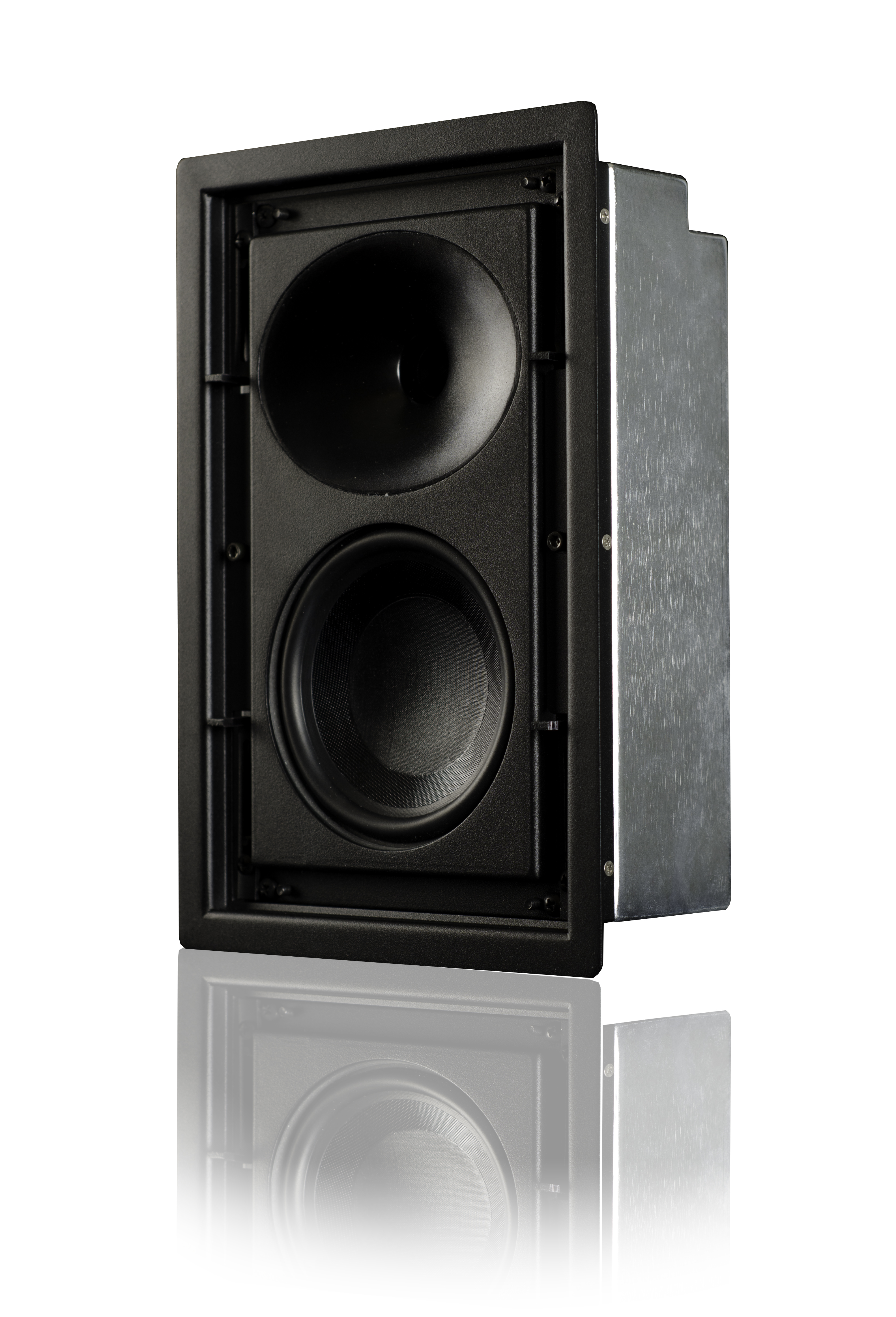

• SCRS-5iw Product Photo - White Background - JPEG Format *
* click to open then right-click image and "save as" to save
