SCRS-6c-ica
KEY FEATURES
• 6-inch Two-Way Loudspeaker, Only 8-inch Square
• High-Sensitivity: 93dB LF / 105dB HF
• 6-inch Deep Back Box Included
• Ideal for Dolby Atmos Systems
• Angled Version of the SCRS-6c-iw
• All Metal Construction
• Input Cover with Conduit Termination
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS

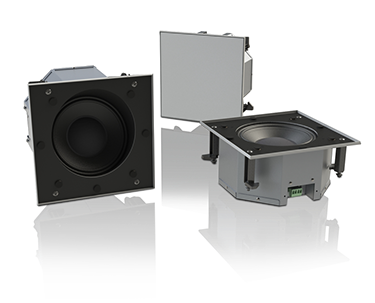

The SCRS-6c-ica is an angled version of the SCRS-6c-iw and is perfect for Immersive Audio ceiling and surround applications that require the loudspeakers to be “aimed” at the listening area. Like its “iw” cousin, the SCRS-6c-ica brings PRO trademark thrilling sound to Immersive and Distributed Audio systems at a new level of affordability. Though compact at 8" square and only 5.75" deep, the SCRS-6c-ica is a true high-output design. The 6.5" professional-grade driver features a common magnet for both the high-output woofer and coaxially-mounted, high-sensitivity compression tweeter. This unique magnet design keeps driver depth to a minimum, allowing the angled SCRS-6c-ica to fit into a 2"x6" stud construction wall.
The SCRS-6c-ica is highly efficient (unheard of for architectural speakers) with sensitivities of 93dB and 103dB per 1 watt input for the woofer and compression tweeter respectively. The result is sound which is lively, with high dynamic contrast and full bandwidth even at low listening levels. The SCRS-6c-ica includes a passive crossover network so it can be driven with a single amplifier channel, but like all PRO loudspeakers, requires a PRO DSP amplifier for high pass-filtration and response contouring.
To achieve the high sensitivity, the SCRS-6c-ica sacrifices a bit of low-frequency bandwidth, so it must be used in conjunction with Surround or Distributed Audio subwoofers. It partners perfectly with the LFC-210im in-wall subwoofer system to create high-output, full-range distributed audio systems for foreground and background music applications.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
POWER RECOMMENDATION:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
In-ceiling high-output angled compact full-range speaker with grille
6" high-output woofer
1" compression driver on concentric horn
8th order acoustic via DSP
150W
93dB
Requires amplification via PRO DSP amplifier
100W, 200W or 300W
125Hz - 23kHz
113db
8-ohms
8"H x 8"W x 5.75"D
7.8 lbs.
