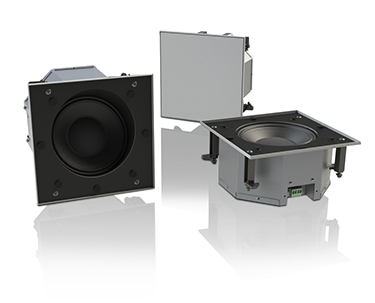

SCRS-6c-iw
KEY FEATURES
• 6-inch Two-Way Loudspeaker, Only 8-inch Square
• High-Sensitivity: 93dB LF / 105dB HF
• 4-inch Deep Back Box Included
• Ideal for Dolby Atmos Systems
• Input Cover with Conduit Termination
• All Metal Construction
• Superb for Distributed Audio
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS
The SCRS-6c-iw brings PRO trademark thrilling sound to Immersive and Distributed Audio systems at a new level of affordability. Though compact at 8" square and only 3.9" deep, the SCRS-6c-iw is a true high-output design. The 6.5" professional-grade driver features a common magnet for both the high-output woofer and coaxially-mounted, high-sensitivity compression tweeter. This unique magnet design keeps driver depth to a minimum, allowing the SCRS-6c-iw to fit comfortably into a standard 2"x4" stud construction wall.
The SCRS-6c-iw is highly efficient (unheard of for architectural speakers) with sensitivities of 93dB and 103dB per 1 watt input for the woofer and compression tweeter respectively. The result is sound which is lively, with high dynamic contrast and full bandwidth even at low listening levels. The SCRS-6c-ica includes a passive crossover network so it can be driven with a single amplifier channel, but like all PRO loudspeakers, it requires a PRO DSP amplifier for high pass-filtration and response contouring.
While the dynamic capability of this surprisingly small and affordable speaker makes it perfect for Surround and Immersive Audio systems in media or multi-use rooms, the SCRS-6c-iw also excels as a Distributed Audio speaker throwing full and rich sound in a very wide 100 degree pattern. You can easily cover large rooms with fewer loudspeakers.
To achieve the high sensitivity, the SCRS-6c-iw sacrifices a bit of low-frequency bandwidth, so it must be used in conjunction with Surround or Distributed Audio subwoofers.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
POWER RECOMMENDATION:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
In-wall, high-output compact full-range speaker with grille
6" high-output woofer
1" compression driver on concentric horn
8th order acoustic via DSP
150W
93dB
Requires amplification via PRO DSP amplifier
100W, 200W or 300W
125Hz - 23kHz
113db
8-ohms
8" H x 8" W x 3.9" D
7.3 lbs.
DOCUMENTATION
• SCRS-6c-iw 3-View Drawing - PDF Format
• SCRS-6c-iw 3-View Drawing - DWG Format
• SCRS-6c-iw Product Sheet - PDF Format
PHOTOS
• SCRS-6c-iw Product Photo - Black Background - PDF Format (coming soon)
• SCRS-6c-iw Product Photo - White Background - JPEG Format * (coming soon)
* click to open then right-click image and "save as" to save
