SCRS-6im
KEY FEATURES
• Compact Version of SCRS-26im
• Ported Enclosure Included
• Fits within 2" x 4" wall
• Passive and Bi-Amp Versions
• Ideal for Dolby Atmos and Auro 3D
• Low Profile Surface and Flush Mount Grilles Available
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS

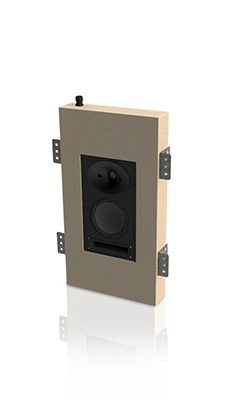

The SCRS-6im in-wall loudspeaker is the new “little brother” to the best-selling SCRS-26im model. The SCRS-6im offers the same dynamic and accurate sound quality of the 26im but at a lower cost and can be purchased with optional passive crossover network for single-amp operation.
The SCRS-6im (with tuned bass-reflex enclosure) is less than 4” deep and 14” wide to fit within standard 2” x 4” architectural walls. New on the 6im model is the ability to flush the enclosure into the wall surface itself, allowing the use of an optional, fully-flush, frameless grille for a nearly invisible installation. For more traditional installations, an optional surface-mount, minimum-frame perforated grille is also available.
Like the SCRS-26im, the SCRS-6im creates a big, dynamic sound far surpassing the performance limitations of in-wall loudspeakers systems. Its 6-inch professional-grade woofer employs a powerful neodymium motor system, resulting in bass that is tight, extended, and articulate. In like manner, its high-sensitivity compression driver and proprietary elliptical horn provide linear dispersion of high-frequency energy to beyond 30kHz, producing silky smooth highs with true-to-life dynamic range.
The SCRS-6im is suitable for use as either a screen or surround channel loudspeaker in high-performance theater installations, as well as for high-end two-channel and distributed audio systems where aesthetics are a concern. The SCRS-6im has been designed for bi or single amplification to provide greatest system design flexibility. Maximum output is 116dB; making the SCRS-6im the ultimate choice for all in-wall loudspeaker applications.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
POWER RECOMMENDATION:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
WEIGHT:
Built-in, in-wall, high-output two way bi or single amp loudspeaker
Professional 6" long-throw woofer
Professional 1" compression driver on 90 x 60 Elliptical horn
8th order acoustic via DSP
280W LF / 120W HF
93dB LF / 114dB HF
Requires bi-amplification via PRO power amplifier
300W or 450W LF / 100W or 200W HF / 300W or 450W Passive
58Hz - 31kHz
116dB
8-ohms
26" H x 14" W x 3.9" D
21 lbs.
DOCUMENTATION
• SCRS-6im 3-View Drawing - PDF Format
• SCRS-6im 3-View Drawing - DWG Format
• SCRS-6im Product Sheet - PDF Format
PHOTOS
• SCRS-6im Product Photo - Black Background - PDF Format (coming soon)
• SCRS-6im Product Photo - White Background - JPEG Format * (coming soon)
* click to open then right-click image and "save as" to save
