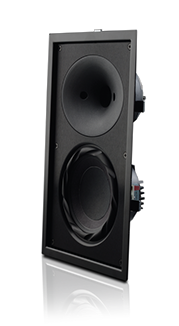

SCRS-6iw
KEY FEATURES
• Professional 6-inch 260W Woofer with Neodymium Motor System
• Professional 1-inch Compression Driver on Elliptical Constant Directivity Horn
• Invisible Mount Design
• Designed for Retrofit Installation
• High-Frequency Extension to Beyond 30kHz
• 8th Order Crossover Slopes
• High-Sensitivity Design: 93dB LF / 114dB HF
• Maximum Output: 116dB
• 8-ohm Nominal Impedance
• DSP Performance Optimized
• Available in Bi-Amped or Single-Amped (passive) Versions
DESCRIPTION
SPECS
DOCUMENTATION / PHOTOS
The SCRS-6iw makes the high-output capabilities of the PRO loudspeaker line accessible to all with an easy-to-integrate retrofit in-wall design. Using high-output professional-grade components, the speaker creates a big, dynamic sound far surpassing the performance limitations of in-wall loudspeakers systems. Its 6-inch professional-grade woofer employs a powerful neodymium motor system, resulting in bass that is tight, extended, and articulate. In like manner, its high-sensitivity compression driver and proprietary elliptical horn provide linear dispersion of high-frequency energy to beyond 30kHz, producing silky smooth highs with true-to-life dynamic range.
The SCRS-6iw is suitable for use as either a screen or surround channel loudspeaker in high-performance theater installations. Likewise, it is perfectly suited for high-end two-channel and distributed audio systems where large floor standing loudspeakers are deemed undesirable, but expectations exceed the performance limitations offered by traditional in-wall loudspeaker solutions.
Like other PRO loudspeakers, the SCRS-6iw has been designed for bi-amplification to maximize the performance of each driver in the system. However, when budget constraints dictate, the product can also be purchased with an integrated passive crossover network (model SCRS-6iw-P) allowing the speaker to be driven by a single amplifier channel. In either mode of operation, proprietary Digital Signal Processing (DSP) is employed for high resolution frequency response shaping, boundary effects correction, ad driver time alignment. As such, PRO amplification is required. Maximum output of the SCRS-6iw is 116dB; making it the ultimate choice for all in-wall loudspeaker applications.
APPLICATION:
LF SECTION:
HF SECTION:
CROSSOVER:
POWER HANDLING:
SENSITIVITY:
POWER REQUIREMENTS:
FREQUENCY RANGE:
MAXIMUM OUTPUT:
NOMINAL IMPEDANCE:
DIMENSIONS:
CUTOUT DIMENSIONS:
WEIGHT:
In-wall high-output bi-amp speaker with frameless grille
Professional 6.5" long-throw woofer
Professional 1" compression driver on 90° x 60° elliptical horn
8th order acoustic via DSP
260W LF / 120W HF
93dB LF / 114dB HF
Requires bi-amplification via PRO power amplifier
52Hz – 31kHz
116dB
8-ohms LF / 8-ohms HF
13-7/8" H x 8-7/8" W x 3-1/4" D
12-7/8" H x 7-7/8" W
8 lbs.
DOCUMENTATION
• SCRS-6iw 3-View Drawing - PDF Format
• SCRS-6iw Parts Legend - PDF Format
• SCRS-6iw 3-View Drawing - DWG Format
• SCRS-6iw Product Sheet - PDF Format
PHOTOS
• SCRS-6iw Product Photo - Black Background - PDF Format

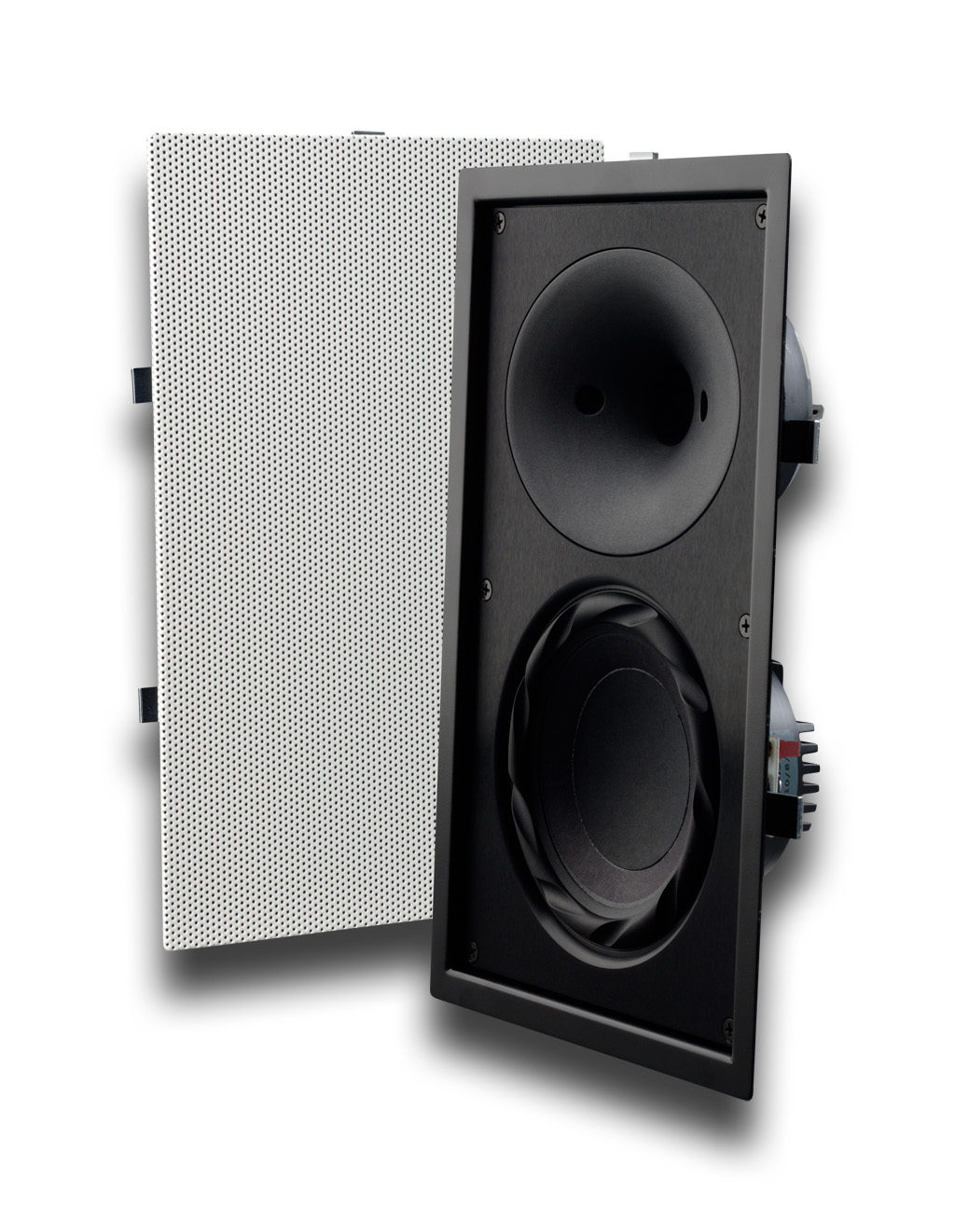

• SCRS-6iw Product Photo - White Background - JPEG Format *
